Health watch with emergency notifications
Background:
It is important to monitor our heart rate once a while. But for
some of us it is good to keep monitor regularly. Specially
senior citizen. Therefore we came up with the idea to build
a wearable watch.
Click here to visit our project page.
Ronesh Sinha, M.D.(copied from an article SutterHealth)
“I’ve noticed that my resting heart rate will be around 55 beats
per minute when I first get up in the quiet early morning, but it
will jump up into the 80s when I’m trying to get the kids to
school on time. It’s a direct reminder for me throughout the day
to slow down and breathe.”
This above statement shows us how important to monitor the heart
rate frequently.
Main areas of the system
Hardware
- Circuit with sensors
- Outer Case
- Charger
Software
Network
- IoT gateway to connect to the server
Components used in the device
Controller
| Name |
Purpose |
| ATMEGA328P |
as the microcontroller, then this is circuited up with
clock, resistors and capacitors
|
Sensors
| MAX30100 |
To measure the heart rate and oxygen level of the blood
|
| LM35 |
To measure temperature |
Communication
| ESP8266 WiFi Module |
Connect to the internet using WiFi |
Power
| 1000mah Li-Po battery |
Get the required power supply for the circuit |
| Micro USB 18650 Charging Board |
Charge the rechargeable battery using usb cable |
Fit
Our experience through out the project
First of all this was a novel experience to us since this was not
just a part of some system but full hardware software system.

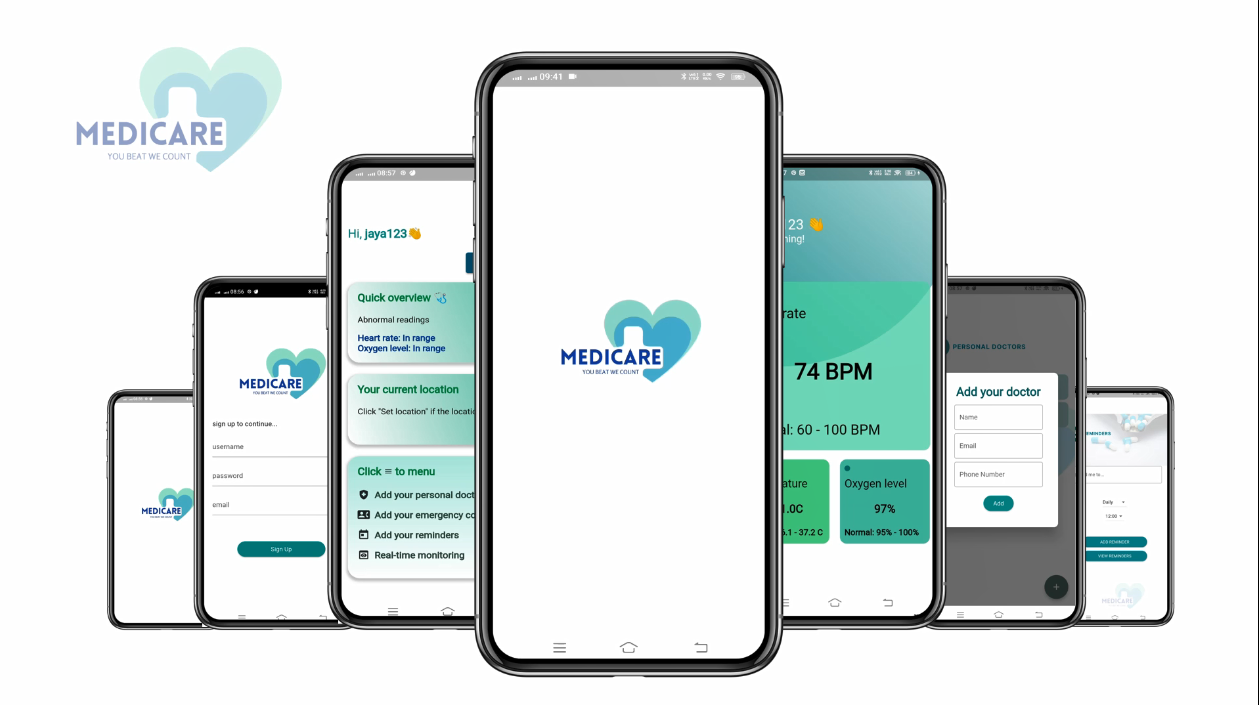

Software that view the received data, sensors which read the data,
MC that controlls all the events, seperate wifi module which sends
the data to the cloud and an Azure server which keeps our backend
on. Alltogether this is the most amazing project that we have
build so far. Why I mentioned this is amazing is because at the
end of all the hardwork we have learn a lot more in this project.
This was the first time we did flutter application. This was the
first time we deployed an application to a cloud server. Therefore
this journey was not that easy. With all the errors that we faced
time to time we could learn a lot through finding solutions to
these errors.
From designing the model for the casing and finshing with proper
documentation was a complete procedure to put a product to the
market. That was the main reason this project was such a brilliant
opportunity to us to gain more knowledge and become so much than
just developing a software or hardware circuit.
Overall it was a great experience.
